Product Features:
The material is regular and the thickness is real.
Bolted to prevent falling off, safer
Four-sided welding, higher quality and firmer
Arc-shaped fork tip, better into the fork and safer
Baseplate double layer welding is firmer

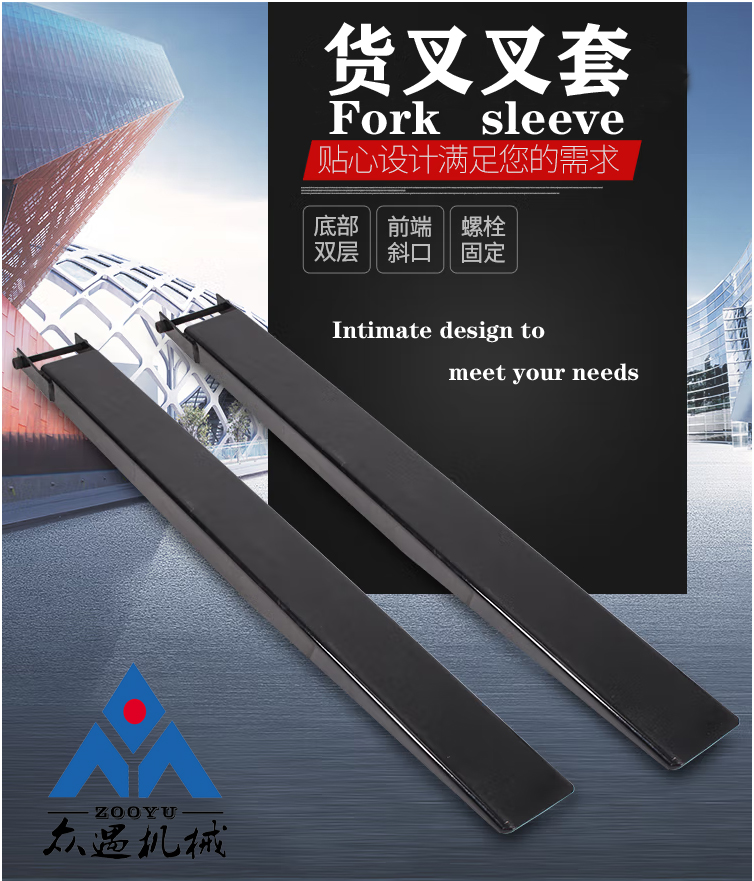

fork sets are also known as growth forks. The function of forklift fork sets is to increase the length of the fork. Some products are relatively large in size, but the length of the fork cannot be reached. In order to increase the length of the fork, we will choose fork sets. There are many sizes and models of fork sets, which can be used with forks. Features of fork sets:
1. Heavy-duty high-strength steel plate, which can be installed on forks with a thickness of ≤ 50mm.
2. The end is welded with a steel snap ring to ensure that the extended fork will not slide during use.
3. Suitable for operating large loads.
4. Sell as a pair (2 pieces).
Fork sleeve parameters:
名称 Name | 规格Specification | 材质Material | 板厚Thickness |
1.5-2T-1500 | 120*60*1500 | Q345B | 5MM |
1.5-2T-1800 | 120*60*1800 | Q345B | 5MM |
1.5-2T-2000 | 120*60*2000 | Q345B | 5MM |
1.5-2T-2200 | 120*60*2200 | Q345B | 5MM |
3T-1500 | 145*65*1500 | Q345B | 5MM |
3T-1800 | 145*65*1800 | Q345B | 5MM |
3T-2000 | 145*65*2000 | Q345B | 5MM |
3T-2200 | 145*65*2200 | Q345B | 5MM |
3T-2400 | 145*65*2400 | Q345B | 5MM |
3T-2500 | 145*65*2500 | Q345B | 5MM |
3.5T-1500 | 145*70*1500 | Q345B | 5MM |
3.5T-1800 | 145*70*1800 | Q345B | 5MM |
3.5T-2000 | 145*70*2000 | Q345B | 5MM |
3.5T-2200 | 145*70*2200 | Q345B | 5MM |
3.5T-2400 | 145*70*2400 | Q345B | 5MM |
3.5T-2500 | 145*70*2500 | Q345B | 5MM |
3.5T-3000 | 145*70*3000 | Q345B | 5MM |
4T-1500 | 170*70*1500 | Q345B | 5MM |
4T-1800 | 170*70*1800 | Q345B | 5MM |
4T-2000 | 170*70*2000 | Q345B | 5MM |
4T-2200 | 170*70*2200 | Q345B | 5MM |
4T-2500 | 170*70*2500 | Q345B | 5MM |
4T-3000 | 170*70*3000 | Q345B | 5MM |
